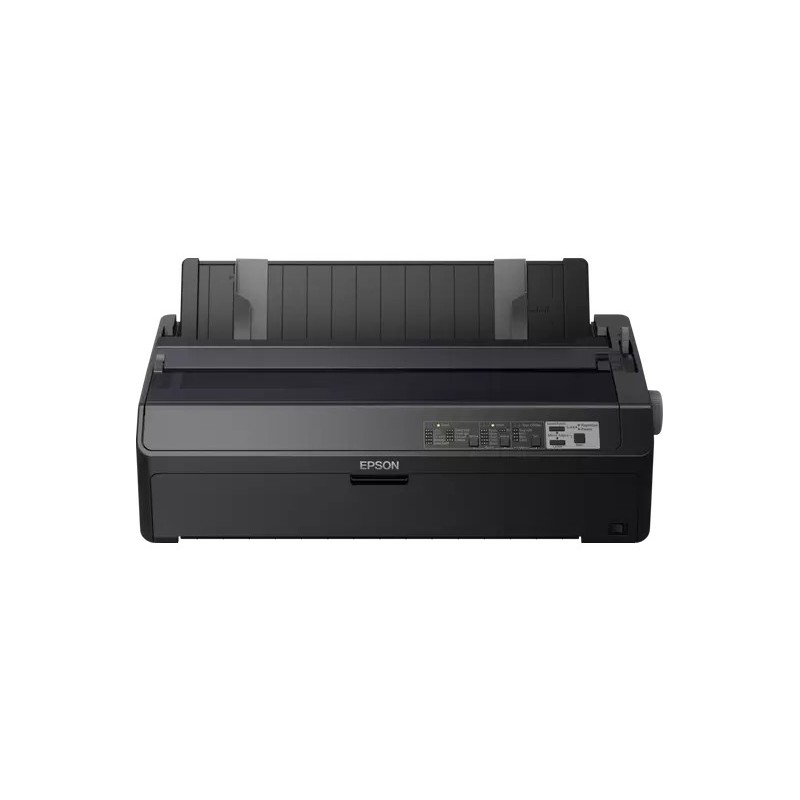

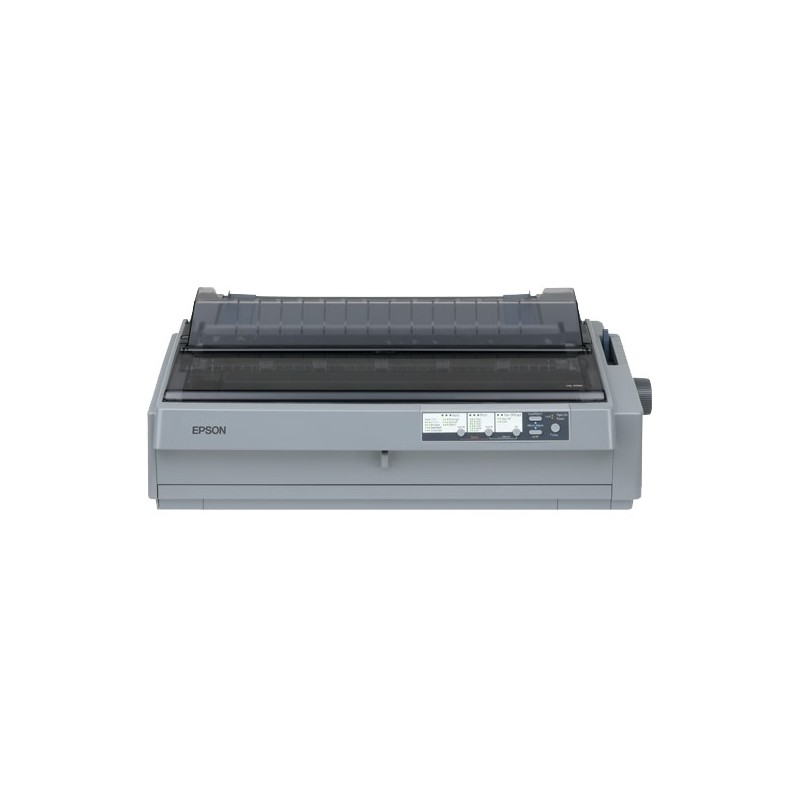

Epson Dot Matrix Printer

Name: Epson Dot Matrix Printer
Brand: Epson
Price: 2399 MOP
Availability: InStock

Reference:

Condition: New product

Add date: 04/08/2026

Last modification date: 06/09/2026

Brand: Epson

LQ-310 PDF LQ-590II PDF

LQ-590IIN PDF

LQ-2090II PDF LQ-2090IIN PDF

LQ-2190 PDF

Warning: Last items in stock!

By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of $ 35.00.

$ 2,399.00

Quantity

Epson

LQ-310
LQ-590II
LQ-590IIN
LQ-2090II A3
LQ-2090IIN A3
LQ-2190 A3

門市到付 / 過數易 / 貨到付款

Data sheet

Product Warranty	1 year carry-in warranty (parts+labor) 1on1 product replacement service within 7 days.

More info

Attribute / Feature	Epson LQ-310	Epson LQ-590II	Epson LQ-590IIN
📌 Product Positioning	Entry-level / General Purpose 24-pin Dot Matrix Light commercial, small counter	High-efficiency Commercial / Heavy-duty 24-pin Dot Matrix High-speed multi-part forms, heavy load	High-efficiency Network Edition Built-in Ethernet + heavy-duty printing
🖨️ Print Method	24-pin Serial Impact Dot Matrix	24-pin Serial Impact Dot Matrix (High-durability printhead)	24-pin Serial Impact Dot Matrix (High-durability printhead)
⚡ Print Speed (Ultra-high speed mode)	Traditional Chinese approx 195 cps English 347 cps	Traditional Chinese approx 274 cps English 584 cps	Traditional Chinese approx 274 cps English 584 cps
📄 Copy Capability (including original)	1+3 copies (original + 3 copies)	1+5 copies (original + 5 copies) Strong penetration	1+5 copies (original + 5 copies) Strong penetration
📑 Paper Feed Method	Front feed (single sheet) Rear tractor feed (continuous forms)	Front single-sheet feed, rear/bottom tractor feed Push & pull tractor	Front single-sheet feed, rear/bottom tractor feed Push & pull tractor
🔌 Standard Interfaces	USB 2.0 + Bi-directional parallel port (IEEE-1284) No built-in network	USB 2.0 + Bi-directional parallel port No built-in Ethernet (optional external adapter)	USB 2.0 + Bi-directional parallel port + Built-in Ethernet port (10/100Base-TX) Supports network printing
🌐 Network Capability	No built-in network, optional serial interface or Bluetooth	No built-in network, optional original network expansion card	Ethernet standard, supports network sharing, remote management Suitable for multi-workstation environments
💾 Buffer Size	128 KB	128 KB	128 KB
🛡️ Reliability & Durability	Printhead life 200 million strokes per pin MTBF approx 10,000 hours	Printhead life 400 million strokes per pin MTBF 20,000 hours Heavy-duty design	Printhead life 400 million strokes per pin MTBF 20,000 hours Heavy-duty design
🎨 Ribbon Model & Life	Ribbon cartridge #7753 / 7754 Life approx 3 million characters	Ribbon cartridge #7762 / 7762VW Life approx 8 million characters (high-speed, high-volume)	Ribbon cartridge #7762 / 7762VW Life approx 8 million characters (high-speed, high-volume)
📊 Barcode / QR Code Printing	Supports EAN-13, Code39, ITF, UPC-A etc. Built-in multiple barcode fonts	Supports 1D barcodes (EAN, Code39, Code128, etc.) QR Code support via graphic mode	Supports 1D barcodes (EAN, Code39, Code128, etc.) QR Code support via graphic mode
📌 Printhead Pins / Technology	24 pins, 0.2mm pin diameter, high-durability alloy pins	24 pins, super-hard alloy pins, enhanced pin life	24 pins, super-hard alloy pins, enhanced pin life
💻 Driver Support / OS	Windows / Linux / macOS universal drivers Supports ESC/P2, IBM PPDS	Windows / Linux / macOS / Virtual environments Full ESC/P2 command set	Windows / Linux / macOS / Network printing services Supports SNMP management
🔋 Power Consumption	Approx 22W (printing) Standby 2.3W	Approx 35W (printing) Standby 2.5W	Approx 35W (printing) Standby 2.5W
🔇 Noise (printing mode)	Approx 55 dB(A)	Approx 55 dB(A) (quiet mode reduces noise)	Approx 55 dB(A) (quiet mode reduces noise)
📐 Dimensions (W x D x H mm)	400 x 257 x 168 mm	413 x 355 x 168 mm	413 x 355 x 168 mm
⚖️ Weight (approx)	Approx 4.8 kg	Approx 7.2 kg	Approx 7.2 kg
✨ Special Features / Highlights	Compact, energy-saving, ideal for small counters & multi-part forms High value entry-level choice	Ultra-fast printing + 1+5 strong copy capability Ideal for finance, logistics, warehouse high-volume reports	Full LQ-590II performance + built-in network card Directly integrate into corporate network, remote management
🏢 Recommended Application Areas	Clinic counters, small retail, shipping invoices Light multi-part form needs	Accounting reports, logistics invoices, manufacturing work orders High-intensity continuous forms printing	Corporate network shared printing, cross-department report server High-volume network dot matrix printing environments
🇹🇼 Chinese Language Support	Built-in Traditional Chinese fonts (Big5 encoding) Supports MingLiU, SimSun	Built-in Traditional Chinese fonts (Big5 / Unicode) High-speed Chinese printing	Built-in Traditional Chinese fonts (Big5 / Unicode) High-speed Chinese printing

Attribute / Feature	Epson LQ-2090II	Epson LQ-2090IIN	Epson LQ-2190
📌 Product Positioning	A3 24-pin High-Durability Dot Matrix Printer Standard Edition / High-Performance Workhorse	A3 24-pin Network Edition Dot Matrix Printer Built-in Network · Enterprise Grade	A3 24-pin High-End Commercial Dot Matrix Printer High-Speed Reports · Large Enterprises
🖨️ Print Method	24-pin Serial Impact Dot Matrix	24-pin Serial Impact Dot Matrix	24-pin Serial Impact Dot Matrix
⚡ Print Speed (Draft / Ultra-High Speed)	Up to 584 cps (12cpi) / 550 cps (10cpi) Chinese approx 242 cps	Up to 584 cps (12cpi) / 550 cps (10cpi) Chinese approx 242 cps	Up to 480 cps (10cpi) Chinese approx 240 cps
📄 Copy Capability (including original)	1+5 copies (original + 5 copies) — continuous paper 1+6 copies (optional tractor)	1+5 copies (original + 5 copies) — continuous paper 1+6 copies (optional tractor)	1+5 copies (original + 5 copies) A3 format strong copy
🔌 Standard Interfaces	USB 2.0 + Bi-directional parallel port (IEEE-1284)	USB 2.0 + Bi-directional parallel port + Built-in Ethernet (10/100Base-TX) + Serial port	USB 2.0 + Bi-directional parallel port Optional network interface card (Type B)
🌐 Network Capability	No built-in network (optional interface card available)	Standard Ethernet · Supports network sharing, SNMP management Suitable for multi-workstation/server environments	Optional (requires original network card) No built-in network on standard interface
💾 Buffer Size	128 KB	128 KB	128 KB
🛡️ Reliability & Durability	Printhead life 400 million strokes per pin MTBF 25,000 hours Total print volume 50 million lines	Printhead life 400 million strokes per pin MTBF 25,000 hours Total print volume 50 million lines	Printhead life 400 million strokes per pin MTBF 20,000 hours Total print volume 40 million lines
🎨 Ribbon Model / Life	S015336 Ribbon cartridge Life approx 8 million characters (LQ mode)	S015336 Ribbon cartridge Life approx 8 million characters (LQ mode)	S015535 / similar high-capacity ribbon Life approx 15 million characters
📊 Barcode / 1D Code Support	Code 39, Code 128, EAN-13/8, UPC-A/E, Interleaved 2 of 5, POSTNET	Code 39, Code 128, EAN-13/8, UPC-A/E, Interleaved 2 of 5, POSTNET	Code 39, EAN-13/8, UPC-A/E, Code 128, Interleaved 2 of 5
📑 Paper Feed Method	Front/rear single-sheet feed Front/rear/bottom continuous forms tractor feed Optional front single-sheet feeder	Front/rear single-sheet feed Front/rear/bottom continuous forms tractor feed	Front/rear single-sheet feed Front/rear/bottom continuous forms tractor feed Optional front single-sheet feeder
📏 Paper Thickness Support	Single sheet: 0.065 - 0.14 mm Multi-part/continuous: 0.12 - 0.46 mm Label backing: 0.16 - 0.19 mm	Single sheet: 0.065 - 0.14 mm Multi-part/continuous: 0.12 - 0.46 mm	Single sheet: 0.065 - 0.14 mm Multi-layer/continuous: 0.12 - 0.46 mm
📐 Maximum Print Width	Single/continuous: 406.4 mm (16 inches) 136 columns (10cpi)	Single/continuous: 406.4 mm (16 inches) 136 columns	Single/continuous: 406.4 mm (16 inches) 136 columns (10cpi)
💻 Driver Support / OS Compatibility	Windows 10/8/7/Vista/XP Windows Server 2016/2012/2008 Linux / macOS universal	Windows 10/8/7/Vista/XP Windows Server series Linux / macOS	Windows 10/8/7/Vista/XP Windows Server 2003-2016 Supports ESC/P2, IBM PPDS
🔋 Power Consumption (Operating/Standby)	Printing: approx 52W Standby: approx 12W Sleep: < 1W	Printing: approx 52W Standby: approx 12W Sleep: < 1W	Printing: approx 49W Standby: lower power design
🔇 Noise (Printing mode)	Approx 55 dB(A)	Approx 55 dB(A)	Approx 55 dB(A)
📐 Dimensions (W x D x H mm)	612 x 375 x 177 mm	612 x 375 x 177 mm	612 x 375 x 177 mm (similar exterior)
⚖️ Weight (approx)	Approx 9.4 kg	Approx 9.4 kg	Approx 9.4 kg
✨ Special Features / Highlights	High durability, large buffer capacity Supports front/rear/bottom paper feed High value mainstream workhorse	Full LQ-2090II performance + built-in Ethernet + serial port Remote management, direct network printing Suitable for server/multi-user environments	Longer ribbon life (15 million characters) Supports A3 large-format financial reports Energy-saving design, low total cost
🏢 Recommended Application Areas	Accounting reports, logistics invoices, manufacturing work orders High-intensity continuous forms printing Standard office environments	Corporate network shared printing, cross-department report servers Large-scale network dot matrix printing environments Remote management needs	Financial institutions, government agencies, large-scale financial systems High-volume invoices, warehouse shipping documents Scenarios requiring long ribbon life & low maintenance
🛡️ Standard Warranty	1 year limited warranty	1 year limited warranty	1 year limited service
