Maple POS-158H Dual Screen aio OC
Reference:
Condition: New product
08/24/2016
11/28/2025

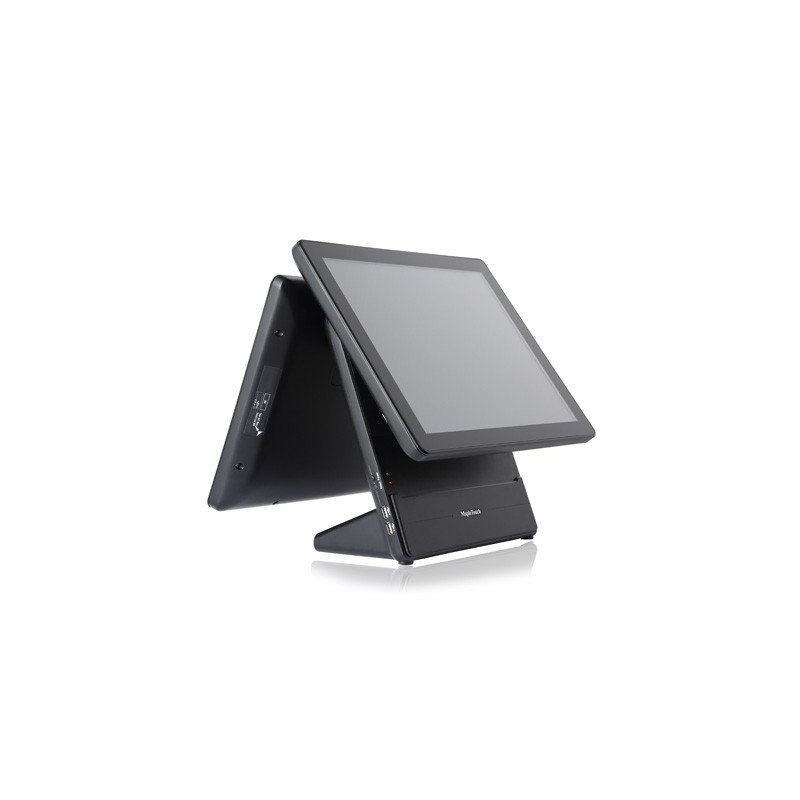

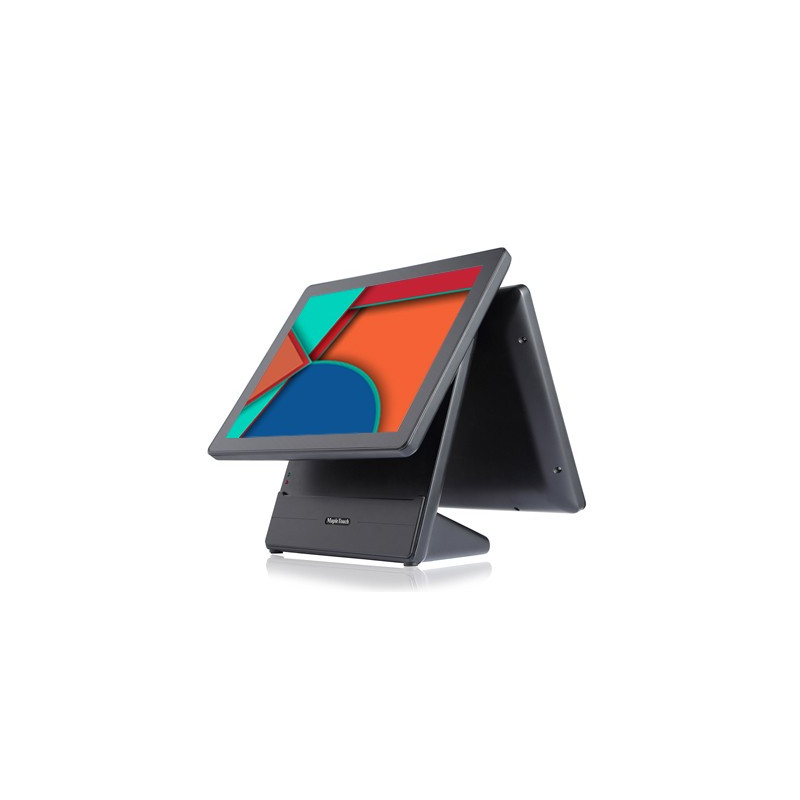

Maple Dual Screen POS PC
MAPLE POS-158H
15" Dual Screen - Single Touch + Signage screen (non-touch)
- Aluminum chassis
- 10 points Capacitive Touch (Taiwan)
- Build in Intel J1900 / i3 4120U / i5 6360U
- 4GB Memory(Max.8GB) `32GB SSD (Max. 1TB)
- Dual Display - One Touch screen `One for customers info.
- Single Screen model POS-156 available
* OS is not included
By buying this product you can collect up to 7 loyalty points. Your cart will total 7 points that can be converted into a voucher of $ 35.00.
Data sheet
| Product Warranty | 1 year carry-in warranty (parts+labor) 1on1 product replacement service within 7 days. |
More info
Model：POS-158H
| Product parameter |
Size： 15"
Resolution ：1024*768
Brightness： 420cd/㎡
Color：16.2M
Contrast：800:1
Touch System： Multi point capacitive touch screen |
| System paramerters |
Mainboard Form Factor: Mini-ITX
CPU：J1900 2Ghz 4C4T/ i3 4120U 2Ghz 2C4T/ i5 6360U 3.1Ghz 2C4T
Memory：4GB DDR3L (Max. 8GB 1600/1333Mhz)
SATA：32GB SDD SATATII 3G 2.5" (Max. 1TB)
LAN：1×RJ45 Gigabit Ethernet（Realtek RTL8168/8111/8112）;
Optional : Wireless network / Mobile network 3G/4G
Audio：Realtek ALC887 @ Intel ValleyView High Definition Auido controller
Graphic : intel Z3700 Series/ HD 4400/ Iris 4400
Hard disk：NAND FLASH 8GB/16G/32G /TF crad，Max64GB
Supported OS：Windows 7/8/10` Linux
|
| I/O |
2×RS232 | 2×USB 2.0 | 1×USB 3.0 |1×VGA |1×HDMI | 1 xLAN
|
| Work environment | Operating： -10~60℃ Operating humidity： 20~85% |
| Qualification | Obtain certificate： CB、CE、FCC、ROHS |
| Power suplly device | Power supply device： 100-240VAC ~ 50~60HZ 1.5A Power output： 12VDC 5A MAX |
| Product specifications |
Material structure： Full metal Aluminum Frame |
