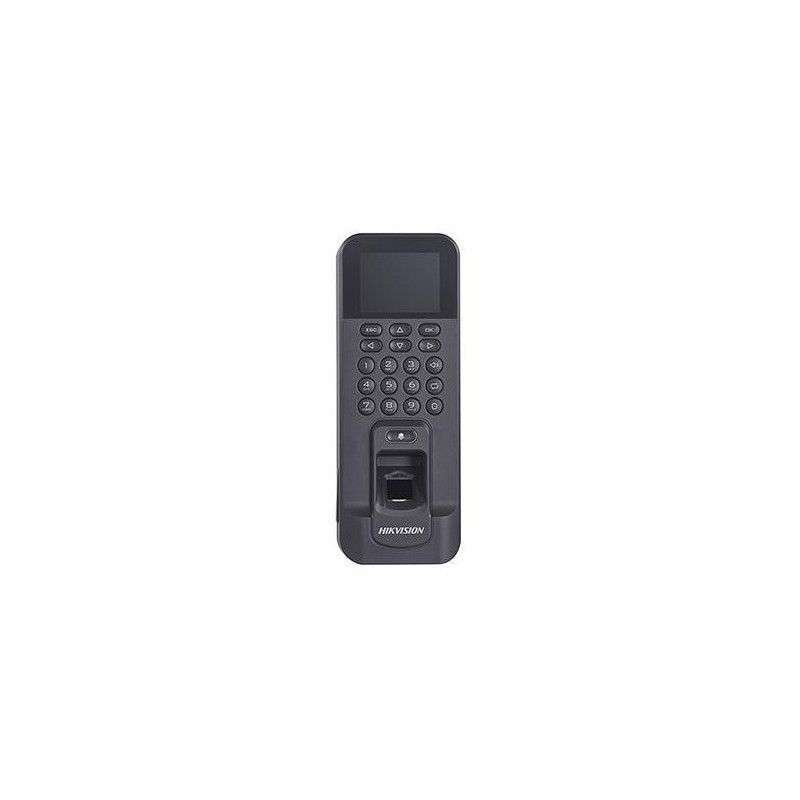

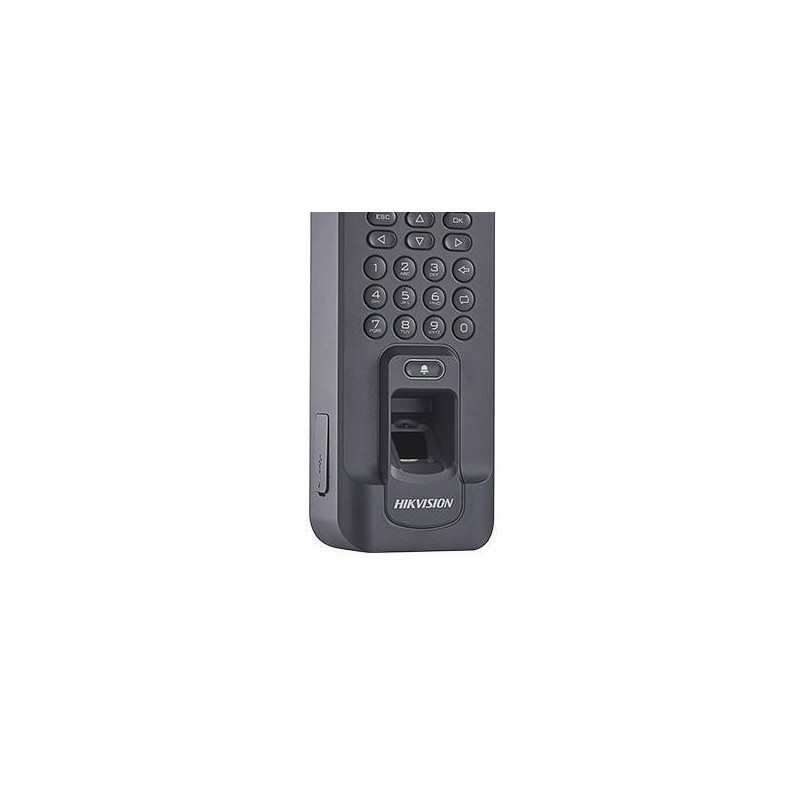

Hikvision 指紋門禁考勤一體機 DS-K1T804EF

Name: Hikvision 指紋門禁考勤一體機 DS-K1T804EF
Brand: Hikvision
Price: 980 MOP
Availability: OutOfStock

編號： DS-K1T804EF

狀態： 新商品

上架時間: 2019-06-20

最後更新時間: 2025-11-28

品牌： Hikvision

Hikvision Standalone Device 2.4-inch LCD screen Read Fingerprint and Proximity Card and PIN

請先查詢注意：最後一件商品！

本商品沒有獎勵積分。

$ 980.00

數量

System Parameters

Fingerprint Recognition Duration:		< 1 s
Operation System:		Linux
Storage:		3,000 cards, 100,000 events, 150,000 attendance records
FRR (False Rejection Rate):		≤0.01%
Card Reading Distance:		1 ~ 5cm
FAR (False Accept Rate):		≤0.001%
Fingerprint Comparing Mode:		1:1 and 1:N, N=3000
Card Reading Mode:		Supports EM Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment
Card Reading Response Duration:		< 1 s
Fingerprint Recognizer:		Optical Fingerprint Recognizer Module
Fingerprint Capacity:		3,000

Wiegand Interface:		Output: Wiegand 26/34; Input: Wiegand 26/34
Communication Interface:		TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Output Interface:		Relay (Lock Output) × 1, and Alarm Output × 1
External Card Reader:		Standard Wiegand26/34
Transmission Rate:		TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1
Input Interface:		Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
Wi-Fi:		Support
USB Interface:		USB2.0, Type A

LCD Screen:		2.4-inch (320×240 LCD-TFT Display Screen)
Key Board:		Keyboard (Back Light)
Power Supply:		12 VDC/2 A
Audio:		1 Buzzer and 1 Loudspeaker
Appearance Color:		Black (Included), Gold (Optional), Silver (Optional), White (Optional)
LED Indicator:		Power/Status (Red/Green)
Reset Key:		× 1
Installation:		Surface Mounting, Metal Door Mounting, Installation with Gang Box
Temper-Proof:		Support
Water-Proof:		IP42
Working Humidity:		10% to 90% (Non-Condensing)
Working Temperature :		-10° C to 55° C (14° F to 131° F)
Dimensions (L×W×H):		205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
